Regline PP Rubber Wear Plates are a premium grade wear and impact resistant 60 Duro rubber liner with steel backing.
FEATURES
Regline PP Rubber Wear Plates are made from a highly elastic premium rubber compound and will display excellent resistance to sliding abrasion and large particle impact.
Regline PP Rubber Wear Plates will absorb energy from the impact of materials. Offering superior wear protection for your equipment and also reducing vibration and lowering noise levels and dust emissions.
Regline PP Rubber Wear Plates are reinforced with a vulcanized steel backing plate for stability in the most demanding applications. This vulcanized steel backing plate allows for extremely strong mechanical fastening to equipment.
Regline PP Rubber Wear plates can be supplied as a custom engineered wear protection rubber lining system for your equipment. They are suitable for both high wear and high impact applications.
TECHNICAL INFORMATION
| Polymer | NR/BR | |
| Colour | Black with steel backing | |
| Specific Gravity | 1.10 | ASTM D297 |
| Hardness | 60° ± 5° Shore A | ASTM D2240 |
| Abrassion | 90mm³ (max) @ 10N | ASTM D5963 |
| Tensile Strength | 20 MPa (min) | ASTM D412 |
| Elongation @ Break | 450% (min) | ASTM D412 |
| Tear Strength | 80 N/mm (min) | ASTM D624 |
| Temperature Range | -20°C to +70°C |
CUSTOM CUT PANELS
Regline PP Rubber Wear plates can be custom cut to any profile. They can include rebates and bevels and can be supplied flat or rolled to a curved profile.
They can be supplied as per specifications and drawings or custom designed as a wear lining system to suit your equipment and application requirements
Custom Cut Liner
Custom Profile Cut
Bevel Cut
Rubber Rebate
Steel Rebate

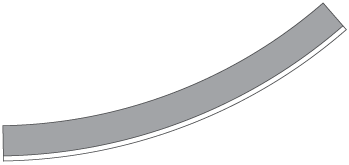

Curved Liner
FASTENING METHOD
Regline PP Rubber Wear Plates can be supplied ready for mechanical fastening to equipment. They can be supplied with welded studs or pre-drilled counter-bored holes to suit through bolts. Bolt assemblies with rubber plugs can be supplied upon request.
Welded Stud
Counterbored Hole and Through Bolt
AVALIABLE SIZES
Reglin stock PP Rubber Wear plate sheets in a range of standard sizes.
| PART NUMBER | DESCRIPTION | SHEET SIZE |
| WP02005/1500 | Regline PP Rubber Wear Plate 20mm (Includes 5mm Steel Backing Plate) | 1500mm x 2000mm |
| WP02010/1500 | PP Rubber Wear Liner | 20mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
| WP02505/1500 | PP Rubber Wear Liner | 25mm x 1500mm x 2000mm (Includes 5mm Steel Backing Plate) |
| WP03005/1500 | PP Rubber Wear Liner | 30mm x 1500mm x 2000mm (Includes 5mm Steel Backing Plate) |
| WP04005/1500 | PP Rubber Wear Liner | 40mm x 1500mm x 2000mm (Includes 5mm Steel Backing Plate) |
| WP04010/1500 | PP Rubber Wear Liner | 40mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
| WP05005/1500 | PP Rubber Wear Liner | 50mm x 1500mm x 2000mm (Includes 5mm Steel Backing Plate) |
| WP05010/1500 | PP Rubber Wear Liner | 50mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
| WP05505/1500 | PP Rubber Wear Liner | 55mm x 1500mm x 2000mm (Includes 5mm Steel Backing Plate) |
| WP06005/1500 | PP Rubber Wear Liner | 60mm x 1500mm x 2000mm (Includes 5mm Steel Backing Plate) |
| WP06010/1500 | PP Rubber Wear Liner | 60mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
| WP08005/1500 | PP Rubber Wear Liner | 80mm x 1500mm x 2000mm (Includes 5mm Steel Backing Plate) |
| WP08010/1500 | PP Rubber Wear Liner | 80mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
| WP08510/1500 | PP Rubber Wear Liner | 85mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
| WP09010/1500 | PP Rubber Wear Liner | 90mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
| WP10005/1500 | PP Rubber Wear Liner | 100mm x 1500mm x 2000mm (Includes 5mm Steel Backing Plate) |
| WP10010/1500 | PP Rubber Wear Liner | 100mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
| WP12510/1500 | PP Rubber Wear Liner | 125mm x 1500mm x 2000mm (Includes 10mm Steel Backing Plate) |
Applications
Regline PP Rubber Wear Plates have been designed primarily for use as a wear protection rubber lining system. They are installed into equipment to protect steel surfaces from abrasion and impact. They are predominantly used in the Mining, Quarrying and Mineral processing industries, typically on the following equipment:
- Chutes and feed spout
- Hoppers and Surge Bins
- Skips and flasks for underground mining
- Launders
- Cyclones
- Feeders
- Screens
- Mills and Scrubber Mills
- Trunnions
- Dump truck bodies
- Conveyor transfer chutes and deflector plates
Regline PP Rubber Wear plates can also be used for any application which requires a mechanically fastened wear and impact resistant rubber liner.
