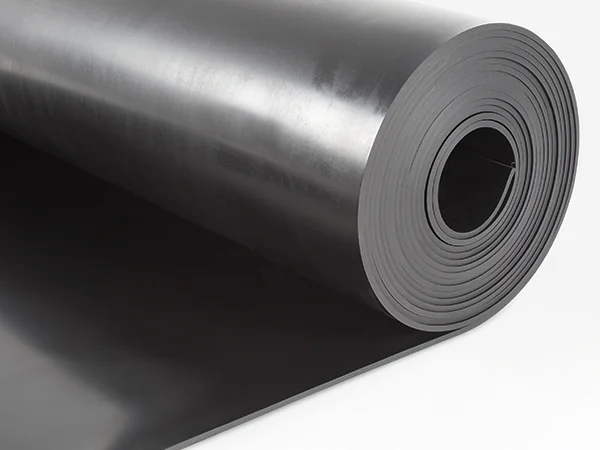

Reglin Neoprene 65 is a superior grade 65 Duro weather and heat resistant rubber sheet.
FEATURES
Reglin Neoprene 65 Rubber Sheet is made from a premium Neoprene rubber compound and will display moderate temperature and flame resistance.
Neoprene 65 has good physical properties including mechanical strength and abrasion resistance. It has ozone/UV resistance making it weather resistant and suitable for outdoor use.
Neoprene 65 exhibits moderate resistance to oil and petroleum-based products including a range of fuels, greases, solvents and hydraulic fluids. It will also display some chemical resistance to acids and alkalis.
APPLICATIONS
Reglin Neoprene 65 Rubber Sheet has been designed primarily for use as a flexible strip, pad, gasket or lining.
It is typically used for sealing, insulating, isolating and protecting steel or other surfaces.
Neoprene 65 is suitable for use outdoors in applications with potential for mild exposure to oils and petroleum-based products.
Its properties make it suitable for use in a range of applications including:
- Flange gaskets on pipes and tanks
- Lining of equipment
- Transfer and joining sleeves
- Flexible expansion joints
- Construction seals
- Curtains and skirts
- Insulating strip
- Isolation barriers
TECHNICAL INFORMATION
| Polymer | CR | |
| Polymer Content | 30% | |
| Colour | Black | |
| Specific Gravity | 1.35 | ASTM D297 |
| Hardness | 65° ± 5° Shore A | ASTM D2240 |
| Tensile Strength | 7 MPa (min) | ASTM D412 |
| Elongation @ Break | 300% (min) | ASTM D412 |
| Abrasion | 400 mm³ (max) @ 10N | ASTM D5963 |
| Temperature Range | -25°C to +80°C | |
| Compression Set | 35% | ASTM D395 B |
| Tear Strength | 25 N/mm (min) | ASTM D624 |
AVAILABLE SIZES
Reglin stock Neoprene 65 Rubber Sheet in a range of standard thicknesses and roll sizes. It can also be supplied in cut lengths, strips, pads and a wide variety of custom cut shapes and gaskets to suit your application requirements. To see our range of stocked strips please see Neoprene Rubber Strips.
| PART NUMBER | DESCRIPTION | WEIGHT (PER L/M) |
| NEOR008 | Neoprene 65 Rubber Sheet 0.8mm x 1200mm (10 L/M Rolls) | 1.3 kgs |
| NEOR01 | Neoprene 65 Rubber Sheet 1mm x 1200mm (10 L/M Rolls) | 1.6 kgs |
| NEOR01.5 | Neoprene 65 Rubber Sheet 1.5mm x 1200mm (10 L/M Rolls) | 2.5 kgs |
| NEOR02 | Neoprene 65 Rubber Sheet 2mm x 1200mm (10 L/M Rolls) | 3.3 kgs |
| NEOR02.4 | Neoprene 65 Rubber Sheet 2.4mm x 1200mm (10 L/M Rolls) | 3.9 kgs |
| NEOR03 | Neoprene 65 Rubber Sheet 3mm x 1200mm (10 L/M Rolls) | 4.9 kgs |
| NEOR031500 | Neoprene 65 Rubber Sheet 3mm x 1500mm (10 L/M Rolls) | 6.1 kgs |
| NEOR04.5 | Neoprene 65 Rubber Sheet 4.5mm x 1200mm (10 L/M Rolls) | 7.3 kgs |
| NEOR06 | Neoprene 65 Rubber Sheet 6mm x 1200mm (10 L/M Rolls) | 9.8 kgs |
| NEOR08 | Neoprene 65 Rubber Sheet 8mm x 1200mm (10 L/M Rolls) | 13 kgs |
| NEOR09 | Neoprene 65 Rubber Sheet 9mm x 1200mm (10 L/M Rolls) | 14.6 kgs |
| NEOR12 | Neoprene 65 Rubber Sheet 12mm x 1200mm (10 L/M Rolls) | 19.5 kgs |
| NEOR16 | Neoprene 65 Rubber Sheet 16mm x 1200mm (10 L/M Rolls) | 26 kgs |
| NEOR19 | Neoprene 65 Rubber Sheet 19mm x 1200mm (10 L/M Rolls) | 30.8 kgs |
| NEOR191500 | Neoprene 65 Rubber Sheet 19mm x 1500mm (10 L/M Rolls) | 38.5 kgs |
| NEOR251500 | Neoprene 65 Rubber Sheet 25mm x 1500mm (10 L/M Rolls) | 50.6 kgs |
