Load Mat

Reglin Load Mat is a durable anti-slip rubber matting designed for load restraint.

FEATURES

Reglin Load Mat is made from a premium Natural rubber compound and will display good physical properties including wear and tear resistance.

Load Mat has a textured finish on both sides which offers high friction in both wet and dry conditions.

Load Mat has been tested to ASTM D1894-11 with modification to a flat steel surface (for static and kinetic coefficients of friction). It exceeds the required coefficient of friction of 0.6 between the load mat and steel in both wet and dry conditions, as specified by the NTC Load Restraint guide.

Please Note: The friction coefficient achieved when using Reglin Load Mat in service depends on the specific load and surface combination. To achieve the optimum performance, ensure that all contact surfaces are cleaned and free from contaminants. It is the responsibility of the user to ensure the load matting is suitable for their application and all relevant load restraint is followed as per the NTC Load Restraint Guide.

APPLICATIONS

Reglin Rubber Load Mat has been designed primarily for use as an anti-slip load restraint device.

It is typically used for increasing the coefficient of friction between transport vehicles and cargo.

Load Mat has been specifically designed for use in the transport industry.

It is highly durable and suitable for repeated use in applications bearing high loads.

Its properties make it suitable for use in a range of heavy-duty applications, typically on the following vehicles:

  • Trucks
  • Rail Wagons
  • Ships
  • Planes

Load Matting is a standard requirement in many load restraint systems.  For more information on the use of Load Mats in Australia, see the National Transport commission load restraint guide.

TECHNICAL INFORMATION

PolymerNR/SBR
ColourBlack
Specific Gravity 1.35ASTM D297
Coefficient of Friction (Kinetic)>0.6ASTM D1894-11 (modified)
Hardness65° ± 5° Shore AASTM D2240
Abrasion300 mm³ (max) @ 10NASTM D5963
Tensile Strength7 MPa (min)ASTM D412
Elongation @ Break350% (min)ASTM D412
Compression Set35%ASTM D395 B
Tear Strength 60 N/mm (min)ASTM D624
Temperature Range -20°C to +70°C

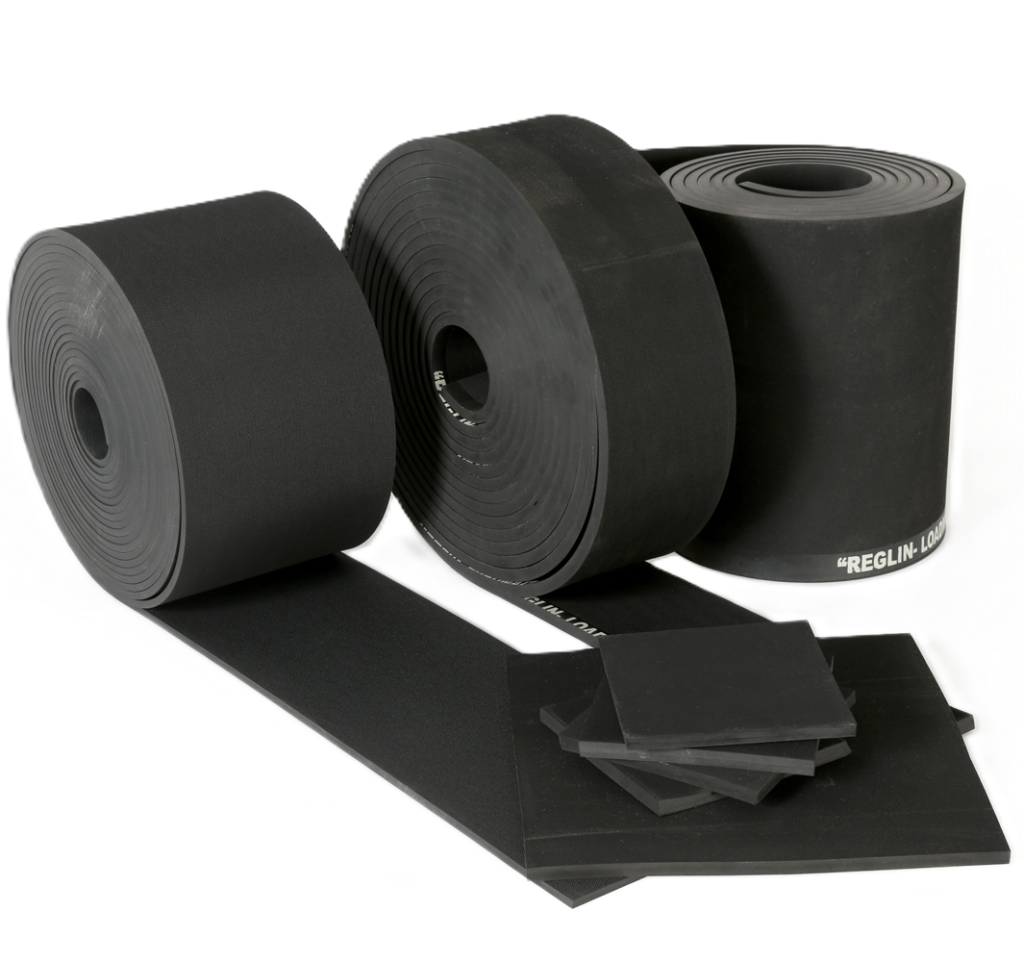

AVAILABLE SIZES

Reglin stock Load Mat in a range of standard thicknesses and roll sizes.   It can also be supplied in cut lengths, strips and pads to suit your application requirements.

PART NUMBERDESCRIPTIONWEIGHT (PER L/M)
LM05Load Mat 5mm x 1200mm (10 L/M Rolls)8.1 kgs
LM08Load Mat 8mm x 1200mm (10 L/M Rolls)13 kgs
