    Regline PT Rubber Wear Plates

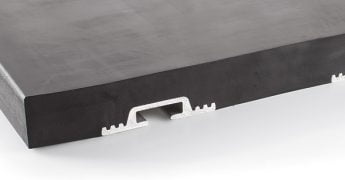

    Regline PT Rubber Wear Plates are a premium grade wear and impact resistant 60 Duro rubber liner with embedded aluminum T-Tracks.

    FEATURES

    Regline PT Rubber Wear Plates are made from a highly elastic premium rubber compound and will display excellent resistance to sliding abrasion and large particle impact.

    Regline PT Rubber Wear Plates will absorb energy from the impact of materials.  Offering superior wear protection for your equipment and also reducing vibration and lowering noise levels and dust emissions.

    Regline PT Rubber Wear Plates are supplied with heavy duty aluminum T-Tracks for added stability.  They are lightweight and allow for strong and easy mechanical fastening to equipment.

    Regline PT Rubber Wear plates can be supplied as a custom engineered wear protection rubber lining system for your equipment.  They are suitable for high wear and moderate impact applications.

    TECHNICAL INFORMATION

    PolymerNR/BR
    ColourBlack with aluminium tracks
    Specific Gravity1.10ASTM D297
    Hardness60° ± 5° Shore AASTM D2240
    Abrassion90mm³ (max) @ 10NASTM D5963
    Tensile Strength20 MPa (min)ASTM D412
    Elongation @ Break450% (min)ASTM D412
    Tear Strength 80 N/mm (min)ASTM D624
    Temperature Range-20°C to +70°C

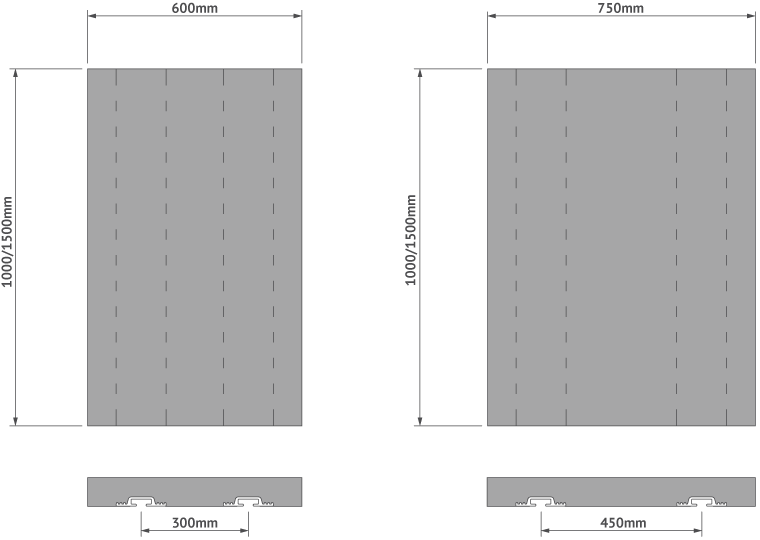

    STANDARD PANELS

    Regline PT Rubber Wear Plates are stocked in a range of standard sizes.

    FASTENING METHOD

    Regline PT Rubber Wear Plates are supplied ready for mechanical fastening to equipment.  They are supplied with embedded AL-140 Aluminum T-tracks designed to be fastened using heavy duty T-Bolts 50x50x10mm Head M16 x 90mm long. T-Bolt assemblies can be supplied upon request.

    T-track System

    AVAILABLE SIZES

    Reglin stock PT Rubber Wear plates in a range of standard sizes.  They can also be supplied cut or moulded to your specifications or custom designed as a wear lining system to suit your equipment and application requirements, which can include rebates and bevels.

    PART NUMBERDESCRIPTIONSIZE
    WPT0550610Regline PT Rubber Wear Plate C/W 2 x AL-140 T-Tracks @ 300mm Centres 55mm x 600mm x 1000mm
    WPT0550615Regline PT Rubber Wear Plate C/W 2 x AL-140 T-Tracks @ 300mm Centres 55mm x 600mm x 1500mm
    WPT0800610Regline PT Rubber Wear Plate C/W 2 x AL-140 T-Tracks @ 300mm Centres 80mm x 600mm x 1500mm
    PT Rubber Wear Plates

    Applications

    Regline PT Rubber Wear Plates have been designed primarily for use as a wear protection rubber lining system. They are installed into equipment to protect steel surfaces from abrasion and impact. They are predominantly used in the Mining, Quarrying and Mineral processing industries, typically on the following equipment:

    • Chutes and feed spout
    • Hoppers and Surge Bins
    • Skips and flasks for underground mining
    • Launders
    • Cyclones
    • Feeders
    • Screens
    • Mills and Scrubber Mills
    • Trunnions
    • Dump truck bodies
    • Conveyor transfer chutes and deflector plates

    Regline PT Rubber Wear plates can also be used for any application which requires a mechanically fastened wear and impact resistant rubber liner.
