Natural 60 HG is a premium grade flexible and wear resistant resilient 60 Duro natural rubber sheet.
FEATURES
Reglin Natural 60 HG Rubber Sheet is made from a highly elastic premium rubber compound and will display excellent resistance to abrasion and impact.
Natural 60 HG has excellent physical properties including mechanical strength and tear resistance. It has ozone/UV resistance making it weather resistant and suitable for outdoor use.
Natural 60 HG is flexible and resilient and has excellent shear strength. It has the capability for high load bearing.
APPLICATIONS
Reglin Natural 60 HG Rubber Sheet has been designed primarily for use as a flexible strip, pad, gasket or lining.
It is typically used for sealing, insulating, isolating and protecting steel or other surfaces.
Natural 60 HG is suitable for use outdoors in applications which require a flexible and resilient rubber. It is suitable for applications with high load bearing and exposure to sheer stress.
It is predominantly used in the construction industry, typically in the following applications:
- Bearing pads and strips
- Gaskets
- Construction seals
- Flexible expansion joints
- Anti-vibration pads
- Transfer and joining sleeves
- Insulating strip
- Isolation barriers
TECHNICAL INFORMATION
| Polymer | NR/BR | |
| Colour | Black | |
| Specific Gravity | 1.10 | ASTM D297 |
| Hardness | 60° ± 5° Shore A | ASTM D2240 |
| Tensile Strength | 17 MPa (min) | ASTM D412 |
| Elongation @ Break | 450% (min) | ASTM D412 |
| Abrasion | 60mm³ (max) @10N | ASTM D5963 |
| Temperature Range | -20°C to +70°C | |
| Tear Strength | 80 N/mm (min) | ASTM D624 |
| Compression Set 22 hrs @ 70°C | 25% (max) | ASTM D395 B |
| Heat Age Properties 7 days @ 70°C Hardness Change | 0/+15° Shore A (max) +/-15% (max) -40% (max) | ASTM D573 |
AVAILABLE SIZES

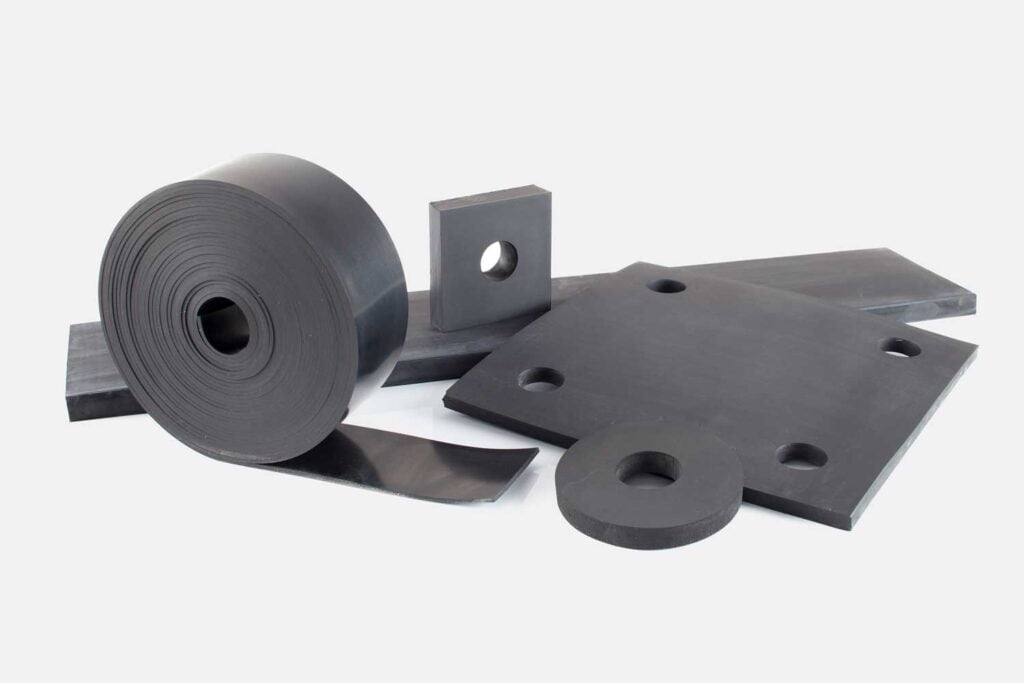

Reglin stock Natural 60 HG Rubber sheet in a range of standard thicknesses including: 3mm, 6mm, 10mm, 12mm, 16mm 19mm, 25mm and 50mm. It is available in a variety of roll sizes and can be supplied in cut lengths, strips, pads and a wide variety of custom cut shapes to suit your application requirements.
