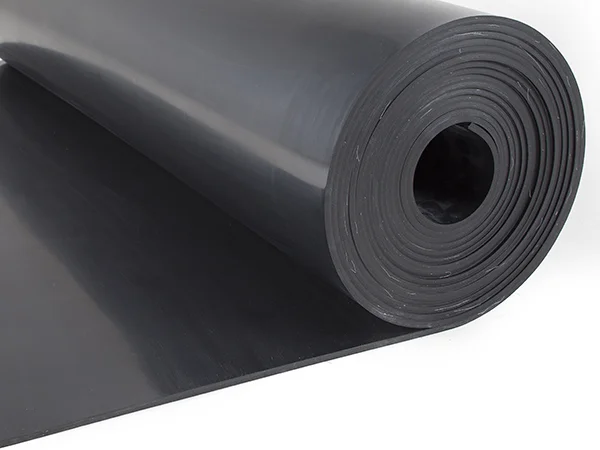

Reglin Natural Nylon Insertion is a superior grade 65 Duro natural rubber sheet with nylon reinforcement.
FEATURES
Reglin Natural Nylon Insertion Rubber Sheet is made from a premium rubber compound and will display moderate resistance to abrasion.
Natural Nylon Insertion is reinforced with a nylon monofilament fabric which gives improved tear strength and dimensional stability.
Natural Insertion has good physical properties including cut and tear resistance. It has ozone/UV resistance making it weather resistant and suitable for outdoor use.
It will also display resistance to some mild chemicals, including acids and alkalis.
APPLICATIONS
Reglin Natural Nylon Insertion Rubber Sheet has been designed primarily for use as a flexible strip, pad, gasket or lining.
It is typically used for sealing, insulating, isolating and protecting steel or other surfaces.
Natural Insertion is suitable for use outdoors.
Its properties make it suitable for use in a range of applications including:
- Flange gaskets on pipes and tanks
- Lining of equipment
- Transfer and joining sleeves
- Flexible expansion joints
- Construction seals
- Curtains and skirts
- Insulating strip
- Isolation barriers
- Variety of sealing applications
TECHNICAL INFORMATION
| Polymer | NR/SBR | |
| Reinforcement | Nylon Monofilament | |
| Colour | Black | |
| Specific Gravity | 1.35 | ASTM D297 |
| Hardness | 65° ± 5° Shore A | ASTM D2240 |
| Tensile Strength | 7 MPa (min) | ASTM D412 |
| Elongation @ Break | 350% (min) | ASTM D412 |
| Abrasion | 300 mm³ (max) @ 10N | ASTM D5963 |
| Temperature Range | -25°C to +70°C |
AVAILABLE SIZES
Reglin stock Natural Nylon Insertion Rubber Sheet in a range of standard thicknesses and roll sizes. It can also be supplied in cut lengths, strips, pads and a wide variety of custom cut shapes and gaskets to suit your application requirements.
| PART NUMBER | DESCRIPTION | WEIGHT (PER L/M) |
| NRI03X1N | Natural Insertion Rubber 3mm x 1200mm x 1 Ply Nylon Reinforced (10 L/M Rolls) | 4.9 kgs |
| NRI04X2N | Natural Insertion Rubber 4.5mm x 1200mm x 2 Ply Nylon Reinforced (10 L/M Rolls) | 7.3 kgs |
