Reglin Rubber Screen Cloths are a premium grade wear and impact resistant 70 Duro rubber screen mat.
FEATURES
Rubber screen cloths from Reglin are engineered to endure the extreme demands of high-impact and high-abrasion screening conditions found in quarry and hard rock mining operations. Made from premium rubber compounds, they combine elasticity and toughness to absorb impact and resist gouging from sharp rock particles. Their flexible nature also allows them to flex slightly under load, which helps reduce fatigue and prolongs the life of the screen media.
Natural resilience means rubber screen cloths can better resist pegging and blinding, as the slightly elastic surface vibrates and helps debris clear itself, maintaining throughput and reducing blockages. The material also offers excellent noise-dampening properties, significantly reducing the sound generated when rock contacts the screen surface compared to rigid steel or wire media.
Each rubber screen cloth is reinforced with a high-strength tensioning cord layer, which provides dimensional stability and allows the panel to be securely tensioned without constant adjustment. This reinforcement ensures the screen remains tight and properly seated throughout operation, preventing loosening or stretching that can lead to performance loss or premature failure.
Because these cloths are manufactured locally and can be custom cut to the exact dimensions and hole patterns needed, Reglin can deliver replacement media that fits existing screen frames and fastening systems without the need for structural changes.
Chemical and moisture resistance ensures the rubber screen cloths perform reliably even in wet or acidic environments common in mineral processing.
APPLICATIONS
Reglin Rubber Screen Cloths are used across quarrying, hard rock mining, and mineral processing operations where screening equipment is exposed to high impact, abrasion, and continuous vibration.
They are ideal for use in vibrating screens, scalping decks, and classification systems handling abrasive rock, ore, and aggregate materials.
The reinforced tensioning layer within each screen cloth allows it to maintain stable tension and alignment throughout operation, making it suitable for use in cross-tension and end-tension screen systems. This design eliminates the need for frequent adjustment and ensures consistent performance even under heavy load and high-frequency vibration.
Rubber screen cloths are commonly used as a direct replacement for traditional woven wire mesh or Steel Panels, offering improved wear life, reduced noise levels, and less maintenance downtime. Their flexibility and resilience make them suitable for both wet and dry screening applications, where they effectively reduce pegging, blinding, and material carryover.
Rubber Screen Cloths are widely used in:
- Primary and secondary vibrating screens for hard rock and aggregate production
- Scalping decks and grizzly feeders exposed to heavy impact and large feed sizes
- Sand and gravel screening where reduced noise and blinding resistance are required
- Fine screening and classification decks in mineral and ore processing plants
- Wet screening systems where water or slurry conditions accelerate wear on steel media
Reglin Rubber Screen Cloths provide a durable, low-maintenance screening solution that delivers superior wear resistance, reduced noise, and long service life in demanding mining and quarrying environments.
TECHNICAL INFORMATION
| Polymer | NR/BR | |
| Reinforcement | Polyester Cord 1100 dtex /1/3 118 EPD | |
| Colour | Black | |
| Specific Gravity | 1.13 | ASTM D297 |
| Hardness | 70° ± 5° Shore A | ASTM D2240 |
| Tensile Strength | 17 MPa (min) | ASTM D412 |
| Elongation @ Break | 350% (min) | ASTM D412 |
| Abrasion | 80mm³ (max) @ 10N | ASTM D5963 |
| Temperature Range | -20°C to + 70°C |

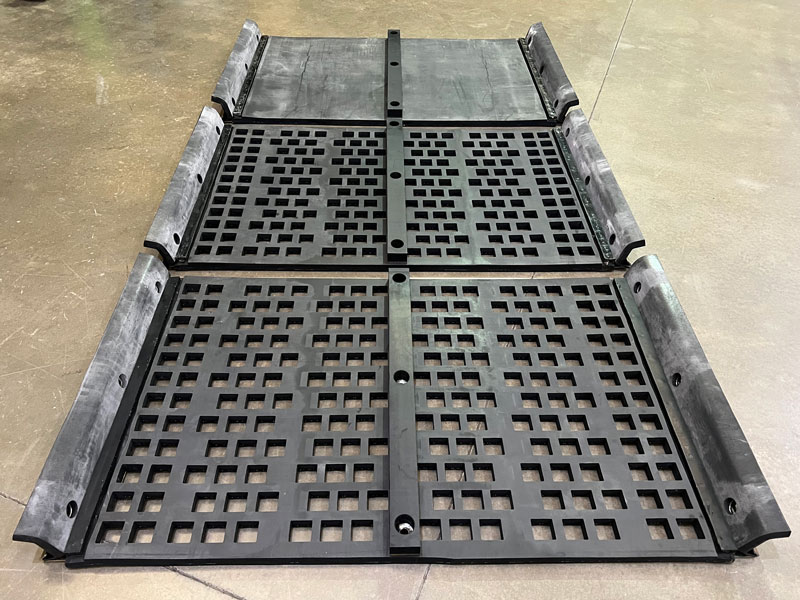

AVAILABLE SIZES
Reglin Rubber Screen Cloths are custom manufactured to suit all types of screening equipment. They are available in a wide range of standard thicknesses: 3mm, 5mm, 7mm, 10mm, 15mm, 20mm, 25mm, 35mm and 50mm, and can be produced in widths up to 1525 mm.
Each screen cloth can be custom cut to any length and supplied with apertures configured to suit your screening requirements. All cloths are fitted with tension hooks to match your specific screen design and fastening system, ensuring easy installation and a secure fit.
To complement our screen media range, Reglin can also supply Rubber-Lined Side Clamp Bars and Steel-Backed Rubber Centre Clamp Bars, designed to work in combination with our screen cloths to provide secure clamping, wear protection, and extended equipment life.
