Premium grade oil resistant 65 Duro nitrile based rubber lining with a CN bonding layer
FEATURES

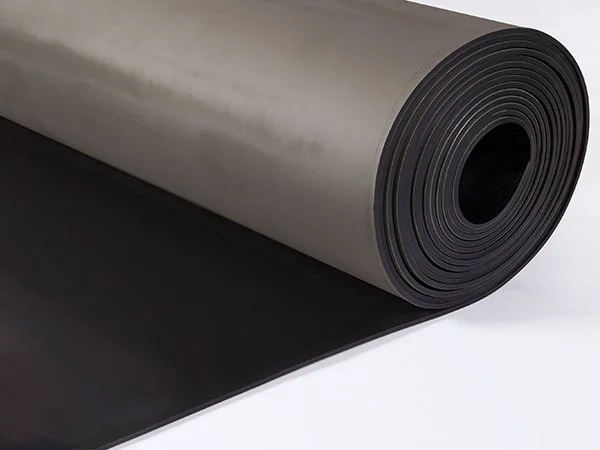

Regline NBR Lining Rubber is made from a premium nitrile rubber compound and provides excellent resistance to oil and petroleum-based products including a range of fuels, greases, solvents and hydraulic fluids. It has low gas permeability, displays good water resistance and is also resistant to mineral oils and a range of aliphatic hydrocarbons.
This premium lining rubber has excellent physical properties and will display good resistance to wet slurry and fine particle sliding abrasion. It will also display good temperature resistance and moderate chemical resistance to some acids and alkalis.
It features a specially formulated Neoprene based CN bonding layer to achieve ultimate adhesion when bonded to steel or rubber surfaces. This CN bonding layer is compatible with a wide range of Neoprene based rubber adhesives and allows for good bond strength to be achieved even in adverse conditions encountered on site.
APPLICATIONS
Regline NBR Lining Rubber has been designed primarily for use as a wear protection lining system for industrial applications.
It is bonded to industrial equipment to protect steel surfaces from wet slurry and fine particle sliding abrasion.
This lining rubber is predominantly used in the mineral processing and mining industries in applications which are subjected to a combination of abrasion and exposure to petroleum-based fluid, typically on the following equipment:
- Tanks and Pipework
- Valves and Pumps
- Flotation Cells
- Thickeners
- Leaching Tanks
- Water and Effluent Treatment Equipment
Regline NBR Lining Rubber can also be used for any application which requires flexible oil resistant rubber including:
- Loading/Discharge Sock
- Transfer and Joining Sleeves
- Variety of Sealing Applications
TECHNICAL INFORMATION
| Polymer | NBR | |
| Colour | Black with CN bonding layer | |
| Specific Gravity | 1.25 | ASTM D297 |
| Hardness | 65° ± 5° Shore A | ASTM D2240 |
| Tensile Strength | 15 MPa (min) | ASTM D412 |
| Elongation @ Break | 600% (min) | ASTM D412 |
| Abrasion | 200mm³ (max) @ 10N | ASTM D5963 |
| Temperature Range | -25°C to +90°C | |
| Tear Strength | 30 N/mm (min) | ASTM D624 |
| Volume Swell @ 27°C x 72 Hrs | Diesel + 3.4% | ASTM D471 |
AVAILABLE SIZES
Regline NBR Lining Rubber is custom manufactured to order. It can be supplied in thicknesses from 3mm – 50mm and in roll widths up to 2000mm wide. Lead times and minimum order quantities apply to this product.
