    Regline Rubber Chute Skirt Liners

    Regline Rubber Chute Skirt Liners are a premium grade wear and impact resistant 60 Duro rubber liner available with steel backing or aluminium T-track.

    FEATURES

    Regline Rubber Chute Skirt Liners are made from a highly elastic premium rubber compound and will display excellent resistance to sliding abrasion and large particle impact.

    Regline Rubber Chute Skirt liners are designed for installation on the discharge point of chutes loading conveyor systems.  They feature a bevelled edge and mechanical fastening system, so they can be easily installed to existing skirt boards, sealing the open gap between the chute and conveyor belt.

    Rubber Chute skirt liners can be supplied reinforced with a vulcanised steel plate for stability in high impact applications or with aluminium T-tracks.  This allows for strong and easy mechanical fastening to equipment.

    Regline Rubber Chute skirt liners are supplied as a custom engineered rubber liner specifically designed for your equipment.

    TECHNICAL INFORMATION

    PolymerNR/SBR
    ColourBlack
    Specific Gravity1.10ASTM D297
    Hardness60° ± 5° Shore AASTM D2240
    Abrasion90mm³ (max) @ 10NASTM D5963
    Tensile Strength20 MPa (min)ASTM D412
    Elongation @ Break450% (min)ASTM D412
    Tear Strength80 N/mm (min)ASTM D624
    Temperature Range-20°C to +70°C

    CUSTOM CUT LINERS

    Regline Chute skirt liners can be custom cut to any profile.  They can be supplied with a single bevelled end, parallel bevels for protection of the top edge of the liner or can have opposite bevels allowing the liner to be reversed and re-used

    Single bevel

    Opposite bevels

    Parrallel bevels

    FASTENING METHODS

    Steel Backing

    Regline Rubber Chute Skirt liners can be supplied with a vulcanised steel backing plate for stability in the most demanding impact and abrasion applications.

    Aluminium T-track

    Regline Rubber Chute Skirt liners can be supplied with an embedded Aluminium T-Track keeping them lightweight and ready for easy installation using the T-bolt fastening method.

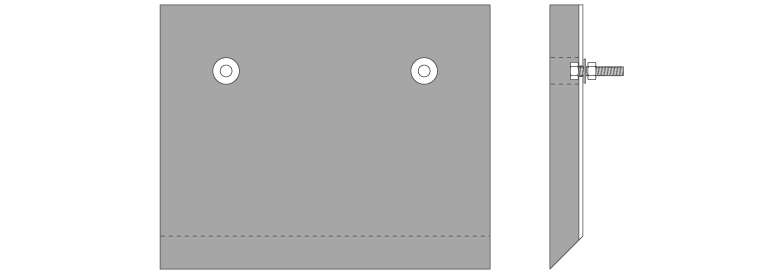

    Counterbored Hole and Through Bolt

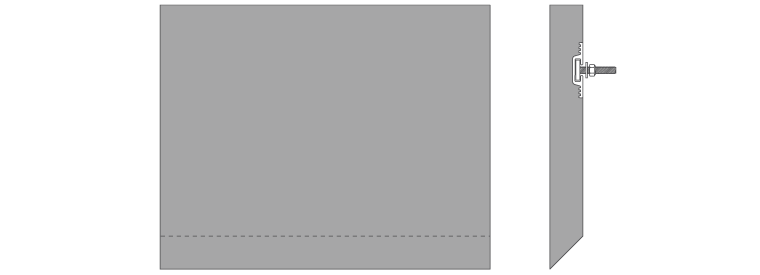

    T-track System

    Available Sizes

    STANDARD THICKNESS Steel Backed*: 30mm, 40mm, 50mm, 60mm
    Aliminium T-track: 55mm
    *Thickness includes standard 5mm or heavy duty 10mm steel backing
    Regline Rubber Chute Skirt Liners

    Applications

    Regline Rubber Chute Skirt Liners have been designed primarily for use as a wear protection rubber liner at discharge points on conveyor system loading chutes.   They are installed onto the skirt board or chute wall to protect it from abrasion and impact.

    Chute skirt liners can be adjusted to create an effective containment seal between equipment and the conveyor belt to reduce material spillage and dust emissions.
