Reg-Lag 60 Strip Lagging is a premium grade wear resistant 60 Duro rubber pulley lagging strip with CN bonding layer.
FEATURES
Reg-Lag 60 Strip Lagging is made from a highly elastic premium natural rubber compound and will display excellent resistance to abrasion. It will improve the coefficient of friction between the pulley and belt, reducing slippage.
Reg-Lag 60 Strip Lagging features grooves and a diamond profile surface. This design prevents material buildup and assists with shedding dirt and water away from the pulley.
Reg-Lag 60 is supplied in strip form for easy application to the pulley, in-situ if required.
Reg-Lag 60 features a specially formulated Neoprene based CN bonding layer to achieve ultimate adhesion when bonded to steel or rubber surfaces. To achieve ultimate adhesion, TRS adhesives are recommended. The CN bonding layer and TRS adhesive system is extremely flexible. It allows for good bond strength to be achieved even in adverse conditions encountered on site.
TECHNICAL INFORMATION
| Polymer | NR/BR | |
| Colour | Black with CN bonding layer | |
| Specific Gravity | 1.10 | |
| Hardness | 60° ± 5° Shore A | ASTM D2240 |
| Abrassion | 90 mm3 (max) @ 10N | ASTM D5963 |
| Tensile Strength | 20 MPa (min) | ASTM D412 |
| Elongation @ Break | 450% (min) | ASTM D412 |
| Tear Strength | 80 N/mm (min) | ASTM D624 |
| Temperature Range | -20°C to +70°C |

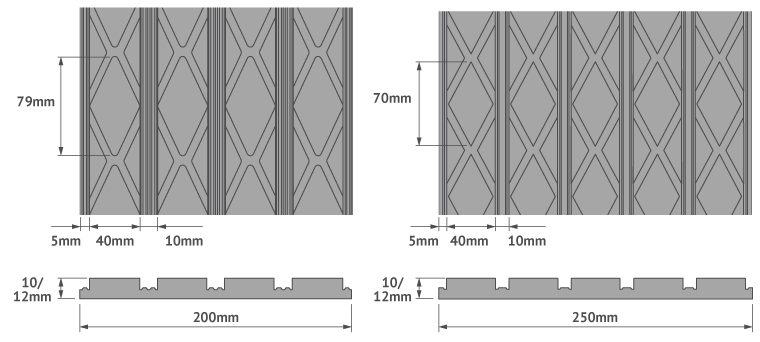

PROFILE
200mm Wide
250mm Wide
AVAILABLE SIZES
| PART NUMBER | DESCRIPTION | SIZE |
| DLS100200 | Reg-lag 60 Strip Lagging with CN B/L | 10mm x 200mm (20 L/M Rolls) |
| DLS100250 | Reg-lag 60 Strip Lagging with CN B/L | 10mm x 250mm (85 L/M Rolls) |
| DLS120200 | Reg-lag 60 Strip Lagging with CN B/L | 12mm x 200mm (20 L/M Rolls) |
| DLS120250 | Reg-lag 60 Strip Lagging with CN B/L | 12mm x 250mm (85 L/M Rolls) |
Applications
Reg-Lag 60 Strip Lagging has been designed primarily for use as a wear and corrosion protection lining for conveyor pulleys. It can be used on conveyor system drive, tail, bend and take-up pulleys and is designed for use in medium belt tension applications.
Reg-Lag 60 Strip Lagging is bonded to pulleys to protect the surface from abrasion and to improve pulley wear life. It will reduce belt slippage and improve drive and tracking of conveyors.
