    Cera-Grip Ceramic Strip Lagging

    Cera-Grip Ceramic Strip Lagging is a premium grade wear resistant composite ceramic pulley lagging strip with CN bonding layer.

    FEATURES

    Cera-Grip Ceramic Strip Lagging is made from a highly elastic premium natural rubber compound.  It contains embedded wear resistant alumina ceramic tiles for extreme abrasion resistance.

    Cera-Grip contains dimpled ceramic tiles which maximizes the coefficient of friction between the pulley and belt, reducing slippage.  Each ceramic tile contains rubber around all sides for ultimate adhesion within the lagging and to allow flexibility of the tile.  This flexibility ensures the tile can contact the belt correctly ensuring maximum grip whilst reducing wear to the conveyor belt cover.

    Cera-Grip Ceramic Strip Lagging features a grooved profile surface.  This design prevents material buildup and assists with shedding dirt and water away from the pulley.

    Cera-Grip is supplied in strip form for easy application to the pulley, in-situ if required.

    Cera-Grip features a specially formulated Neoprene based CN bonding layer to achieve ultimate adhesion when bonded to steel or rubber surfaces.  To achieve ultimate adhesion, TRS adhesives are recommended.  The CN bonding layer and TRS adhesive system is extremely flexible.  It allows for good bond strength to be achieved even in adverse conditions encountered on site.

    TECHNICAL INFORMATION

    PolymerNR/BR
    ColourBlack with CN bonding layer
    Specific Gravity1.10
    Hardness60° ± 5° Shore AASTM D2240
    Abrassion90 mm3 (max) @ 10NASTM D5963
    Tensile Strength20 MPa (min)ASTM D412
    Elongation @ Break450% (min)ASTM D412
    Tear Strength80 N/mm (min)ASTM D624
    Temperature Range-20°C to +70°C
    Ceramic Tile 92% Alumina content
    View Further Ceramic Technical Information
    Density 3.65 g/ccASTM C373-99
    Hardness (Rockwell)77 R45NASTM C1327
    Compressive Strength 1950 Mpa (min)ASTM C1424-04
    Flexural Strength 320 Mpa (min)ASTM C1161-02c
    Water Absorption0%ASTM C373-88
    Abrasion by Impingement 0.05 grams (max)
    Abrasion by Rubbing 0.1 grams (max)

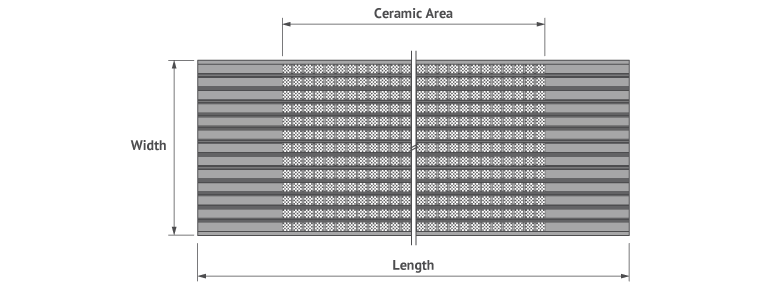

    STRIP LAYOUT

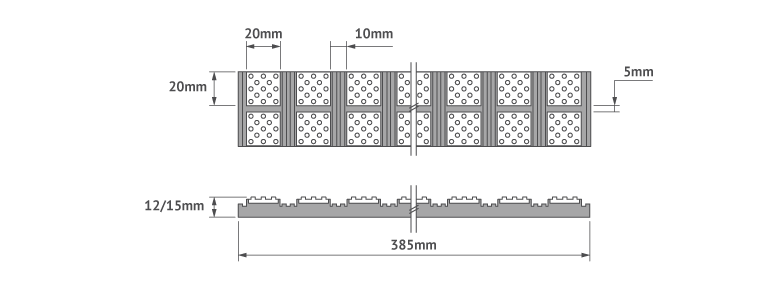

    PROFILE

    Available Sizes

    STANDARD THICKNESS 12mm, 15mm
    STANDARD ROLL SIZE 385mm x 10mtrs (Full Ceramic)
    STANDARD STRIP SIZES (12MM) 385mm x 1050mm (Ceramic Area 650mm)
    385mm x 1200mm (Ceramic Area 800mm)
    385mm x 1350mm (Ceramic Area 950mm)
    385mm x 1500mm (Ceramic Area 1100mm)
    385mm x 1650mm (Ceramic Area 1250mm)
    385mm x 2000mm (Ceramic Area 1600mm)
    385mm x 2250mm (Ceramic Area 1850mm)
    STANDARD STRIP SIZES (15MM) 385mm x 1750mm (Ceramic Area 1350mm)
    385mm x 1950mm (Ceramic Area 1350mm)
    385mm x 2100mm (Ceramic Area 1700mm)
    385mm x 2250mm (Ceramic Area 1850mm)
    CERA-GRIP Ceramic Strip Pulley Lagging

    Applications

    Cera-Grip Ceramic Strip Lagging has been designed primarily for use as a wear and corrosion protection lining for conveyor pulleys.

    It is designed specifically for use on conveyor system drive pulleys operating in extreme conditions, including wet, dirty or dusty environments.  It is suitable for use on long conveyor systems and in medium and high belt tension applications.

    Cera-Grip Ceramic Strip Lagging is bonded to pulleys to protect the surface from abrasion and to improve pulley wear life.  It will reduce belt slippage and improve drive and tracking of conveyors.
