70 Duro, Wear Resistant, Impact Resistant, Reinforced, Natural Rubber

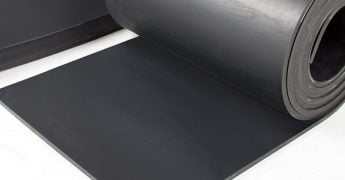

Reglin Screen Cloth Rubber is a black, premium grade, tear and impact resistant, highly elastic, wear resistant 70 Duro blended natural and synthetic rubber sheet, which has excellent cutting and abrasion resistance to hard and sharp particle impact. It is designed specifically for use as a screen media for Rubber Cross-tensioned and End-tensioned screen panels.
Screen Cloth Rubber is reinforced with a special heat-treated Polyester 1100 dtex cord fabric for stability in the most demanding impact and abrasion screening applications. This fabric reinforcement allows for tensioning of screen mats when installed and eliminates the need for constant adjustment.
Technical Information
| Polymer | NR/BR | |
| Reinforcement | Polyester Cord 1100 dtex /1/3 118 EPD | |
| Colour | Black | |
| Specific Gravity | 1.13 | ASTM D297 |
| Hardness | 70° ± 5° Shore A | ASTM D2240 |
| Abrasion | 80mm3 (max) @ 10N | ASTM D5963 |
| Tensile Strength | 17 MPa (min) | ASTM D412 |
| Elongation @ Break | 350% (min) | ASTM D412 |
| Temperature Range | -20°C to + 70°C |
Available Sizes
| STANDARD THICKNESS | 1 Ply: 3mm, 5mm, 7mm, 10mm 2 Ply: 15mm, 20m, 25mm, 35mm, 50mm |
| STANDARD ROLL SIZE | 1220mm (all thicknesses) 1550mm (5mm, 7mm, 10mm) 1525mm (15mm, 20mm, 25mm, 35mm, 50mm) |
Screen Cloth Rubber can be supplied as a roll, sheet or as a custom-made screen cloth mats to suit screening equipment, ready for easy installation. They can be supplied with apertures, hooks and protection strips as per specifications and drawings or custom designed to meet application requirements.
Applications
Screen Cloth Rubber is designed primarily for use as a screen media for Rubber Cross tensioned and End tensioned screen panels on vibrating screening equipment in the Mining, Quarrying and Mineral and Metals processing industries but can be used be used for any application which requires a reinforced tear and impact resistant rubber.
