    Grip Strip

    Reglin Rubber Grip Strip is a premium grade flexible rubber profile designed to clamp rubber dust sealing cloth to seal equipment for dust encapsulation.

    FEATURES

    Grip Strip is made from a premium EPDM rubber compound.  It has excellent physical properties and will display good UV resistance making it weather resistant and suitable for outdoor use.

    Grip Strip is designed to clamp rubber dust sealing cloth onto a 10mm steel round bar which is mounted on equipment structures.  This creates a totally encapsulated dust sealing system that allows for movement between different parts of equipment. Grip Strip is resilient and can be removed and reinstalled multiple times to allow for inspections or when rubber dust sealing cloth replacement is required.

    Grip strip is available in straight lengths or pre-formed corners for use on bends.

    TECHNICAL INFORMATION

    PolymerEPDM
    ColourBlack
    Specific Gravity1.20ASTM D297
    Hardness70° ± 5° Shore AASTM D2240
    Tensile Strength10 MPa (min)ASTM D412
    Elongation @ Break400% (min)ASTM D412
    Temperature Range30°C to + 100°C

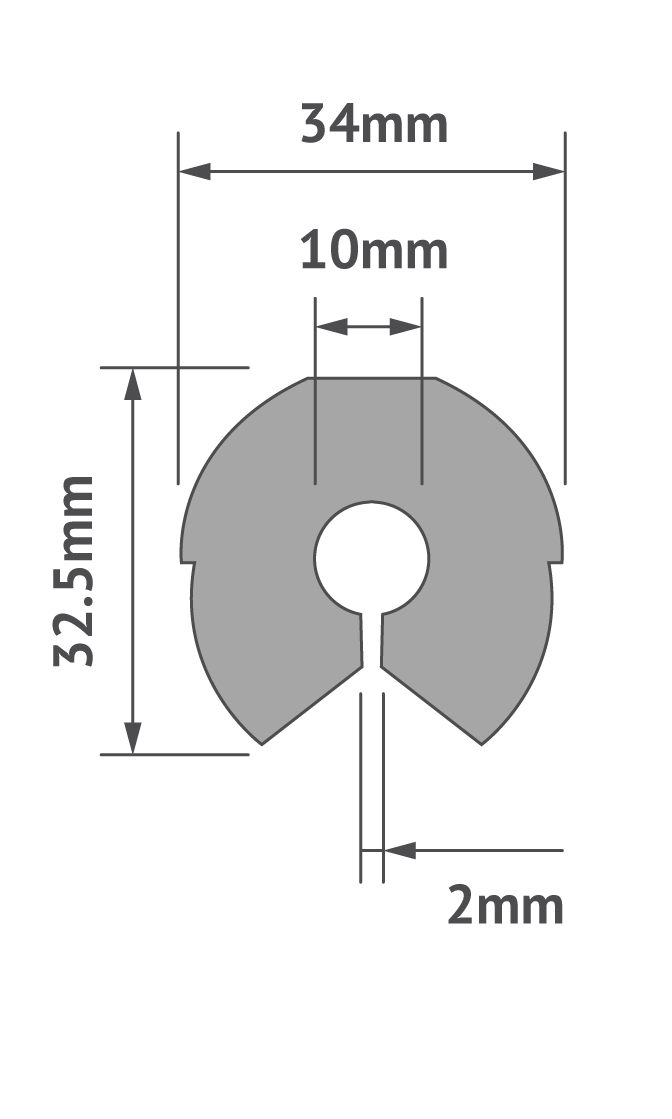

    PROFILE AND CORNER LAYOUTS

    GS10

    GS10IG

    GS10OG

    GS10UG

    AVAILABLE SIZES

    PART NUMBERDESCRIPTIONSIZE
    GS10-07Grip Strip Straight 10mm Dia Bar7 L/M Rolls
    GS10-20Grip Strip Straight 10mm Dia Bar20 L/M Rolls

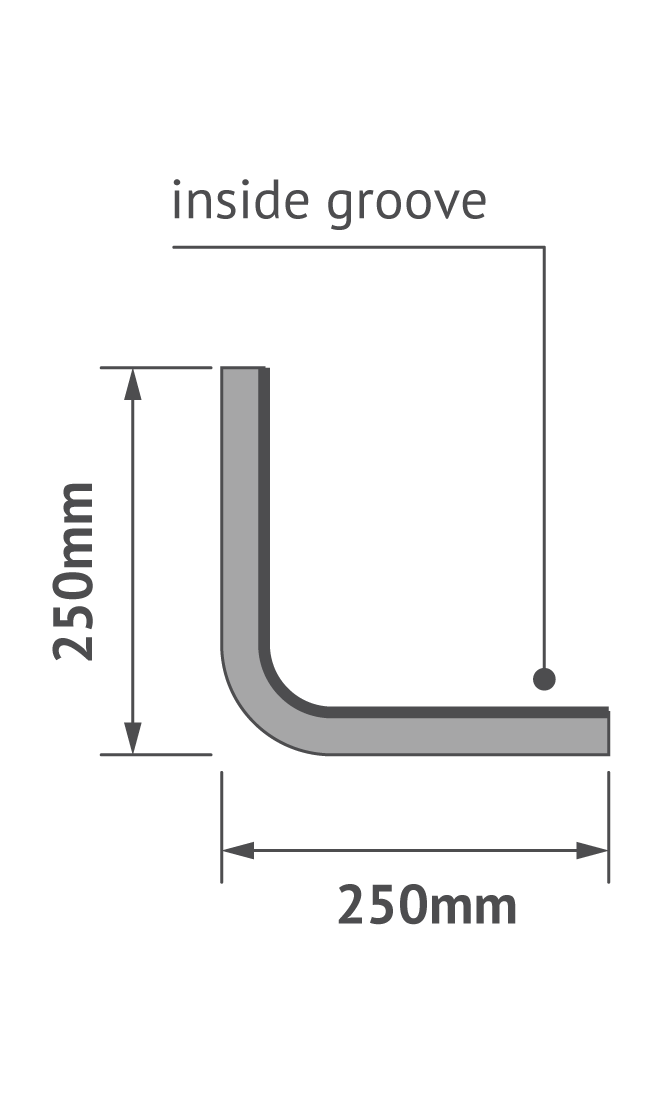

    GS10IGGrip Strip Corner 10mm Dia Bar
    (Inside Groove)
    250mm x 250mm
    GS10OGGrip Strip Corner 10mm Dia Bar
    (Outside Groove)
    250mm x 250mm

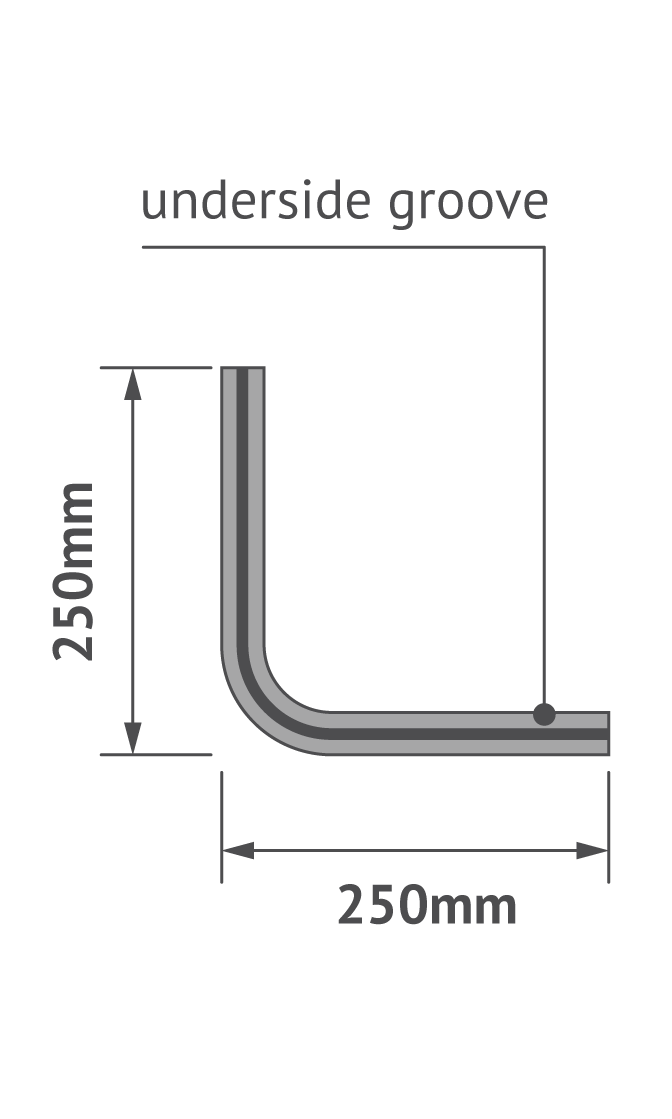

    GS10UGGrip Strip Corner 10mm Dia Bar
    (Underside Groove)
    250mm x 250mm
    Grip Strip and Elbows

    Applications

    Reglin Rubber Grip Strip haS been designed for use in combination with Rubber dust sealing cloth as a sealing system.  It is installed on equipment to seal it and encapsulate dust, reducing emissions to the environment.

    It is predominantly used on equipment in the Mining, Quarrying and Mineral processing industries, typically on the following equipment:

    • Screens
    • Feeders
    • Crushers
    • Conveyors systems
    • Transfer chutes
