Anti-Static, Conductive, Rubber Matting

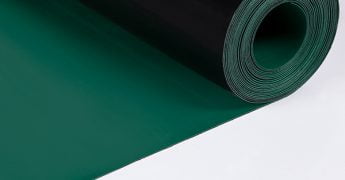

Reglin Anti-Static Conductive Matting is a superior grade, dual layer rubber matting designed for use as an electrical isolating device. It is primarily designed to protect electrical and computer equipment from static electricity. This Anti-static conductive matting is a combination of a green non-conductive top layer used to isolate equipment from static electricity and a conductive black underside used to dissipate static electricity.
Anti-Static Conductive Matting, should always be used with an earthing device for the best results.
Technical Information
| Polymer | SBR | |
| Colour | Black/Green | |
| Specific Gravity | 1.4 | ASTM D297 |
| Hardness | 70° ± 5° Shore A | ASTM D2240 |
| Tensile Strength | 6.5 MPa (min) | ASTM D412 |
| Elongation @ Break | 200% (min) | ASTM D412 |
| Surface Resisitivity Black side | 1.0E +4Ω | |
| Surface Resisitivity Green side | 1.0E +4Ω | |
| Temperature Range | 20°C to +70°C |
Available Sizes
| STANDARD THICKNESS | 2.0mm |
| STANDARD ROLL SIZE | 1200mm x 10mtrs |
Applications
Reglin Anti-static Conductive Matting is designed for use as an electrical insulating rubber barrier underneath electrical and computer equipment in highly sensitive applications.
